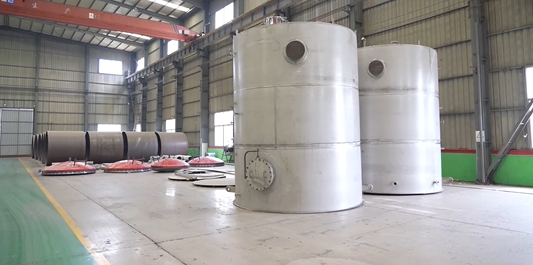

10 M3 Best Price Vertical Stainless Steel Cryogenic Liquid Oxygen Storage Tank
Product Description: GAS TANK
The word cryogenics stems from Greek and means "the production of freezing cold"; however, the term is used today as a synonym for the low-temperature state. It is not well-defined at what point on the temperature scale refrigeration ends and cryogenics begins, but most scientists[2] assume it starts at or below -150 °C or 123 K (about -240 °F). The National Institute of Standards and Technology at Boulder, Colorado has chosen to consider the field of cryogenics as that involving temperatures below −180 °C (-292 °F or 93.15 K). This is a logical dividing line, since the normal boiling points of the so-called permanent gases (such as helium, hydrogen, neon, nitrogen, oxygen, and normal air) lie below −180 °C while the Freon refrigerants, hydrogen sulfide, and other common refrigerants have boiling points above −180 °C.
Cryogenic Liquid Tank
1. Medium: LOX LIN LAr
2. Capacity: 5-100m3
3. Pressure: 2.16 MPA
4. Certification: GB/ASME
Product Parameters
| NITROUS O2 STORAGE TANK PARAMETER |
| Working Pressure (Mpa) | Working Medium | Volume (m³) | Weight (kg) | Outside Size (mm) |
| 2.16 | Liquid N₂O | 5 | 5200 | Φ1900×5115 |
| 2.16 | Liquid N₂O | 10 | 7860 | Φ2200×6030 |
| 2.16 | Liquid N₂O | 15 | 10087 | Φ2400×7020 |
| 2.16 | Liquid N₂O | 20 | 12740 | Φ2500×8120 |
| 2.16 | Liquid N₂O | 30 | 17165 | Φ2900×8550 |
| 2.16 | Liquid N₂O | 50 | 28644 | Φ3100×11500 |
| 2.16 | Liquid N₂O | 100 | 57550 | Φ3500×16450 |
| 2.16 | Liquid N₂O | 150 | 82460 | Φ3900×19000 |
Advanced Technology
1. Using the special rotational molding technology, it is the steel mesh welding on the bodysurface.
2. Using polyethylene as raw material, using rotational molding process make the steel plate, steel mesh and the organic combination of polyethylene as a whole.
3. The product has the advantages of seamless welding , no leakage, non-toxic, anti ageing,shock.
resistance, corrosion resistance, long service life, conform to the hygiene standards.
If you need a detailed technical specification sheet for the storage tank (including structural drawings, performance parameters, and acceptance standards), you can obtain it by contacting us, and we can also discuss your personalized needs at the same time.
Email: info@gneeheatex.com
WhatsApp: +8615824687445
